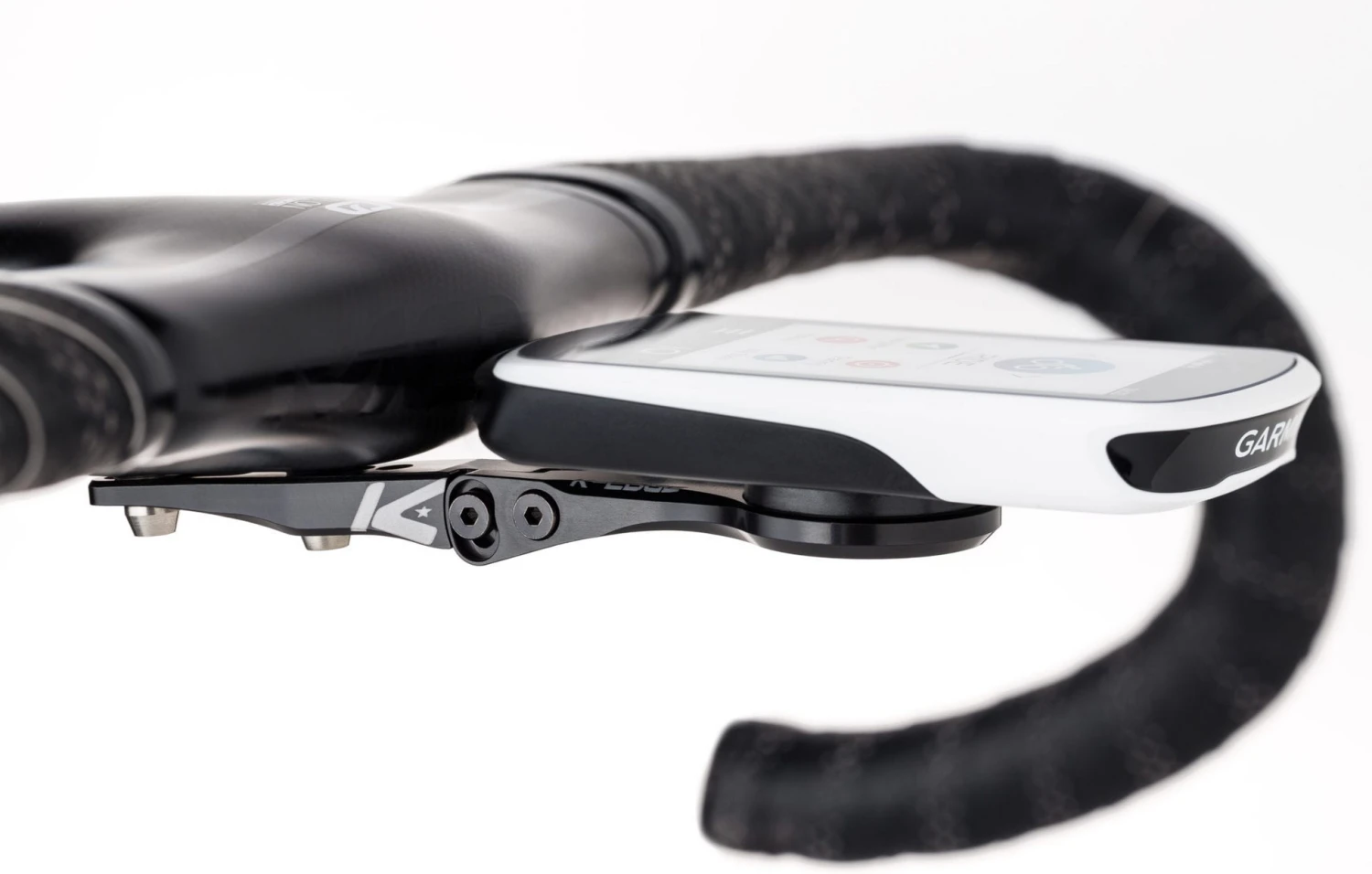

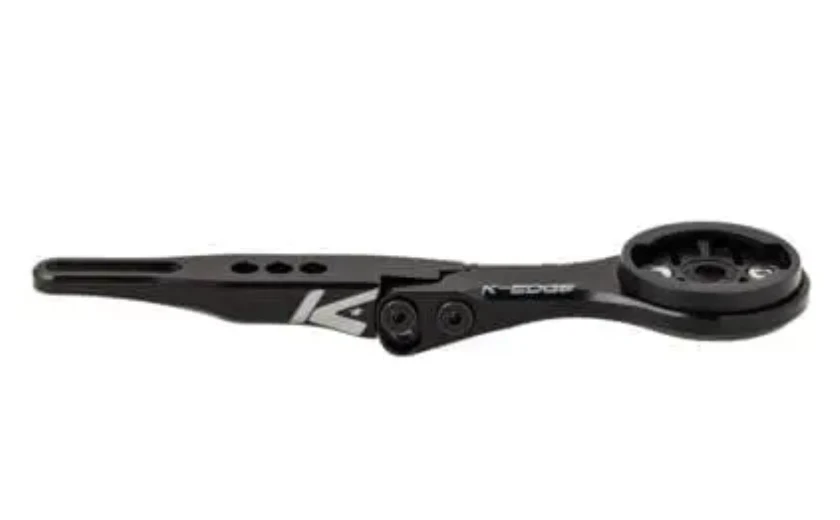

K-Edge Garmin IHS Computer Bike Mount For Integrated Handlebar System

Attributes (specs):

• For Integrated Handlebar (one piece) bar/stem
• Pro-level mount with -7 degree articulation for custom computer positioning
• Lifetime warranty. CNC Machined. Black Anodized
• GARMIN approved replaceable computer insert protects computer tabs
• Not combo compatible (choose K13-2500iC mount for Combo use)
• M5 hardware included. If a smaller bolt required, use an 8.4mm washer to ensure a secure fit
• Made in-house. Boise, Idaho USA
• Black

Compatibility:

• All Garmin cycling computers.
• Most Canyon integrated handlebar-stem systems (not compatible with Canyon H36 integrated bar).  **M4x20mm 0.7 thread pitch hardware not included.**
• Click Here for our Canyon Fit Kit
• Combo Adapter (K13-580-BLK) is NOT compatible and will void the lifetime warranty.
• NOT COMPATIBLE WITH: CERVELO WISHBONE SYSTEM (ABO8, CS028 V-STEM), VENTUM INTEGRATED HANDLEBARS, COLNAGO R41 STEM, VISION METRON 5D, BLACK INC. INTEGRATED HANDLEBARS, BMC ICS HANDLEBARS/STEMS, SCOTT SYNCROS INTEGRATED HANDLEBARS, CANYON CP0039 and CANYON CP0047.

Installation:

• All IHS mounts must be installed using one of the three-round screw holes AND the elongated mounting slot. Failure to do so will void the lifetime warranty.
• All IHS mounts must be directly mounted to the handlebar without the use of shims or adapters.
• Installation of an IHS mount in any orientation that is not following the above guidelines will void the K-EDGE lifetime warranty.

Please contact K-EDGE warranty manager [email protected] for questions or concerns. We highly suggest you follow the recommendations in the Garmin instructions, that recommend the use of the provided tether leash.
