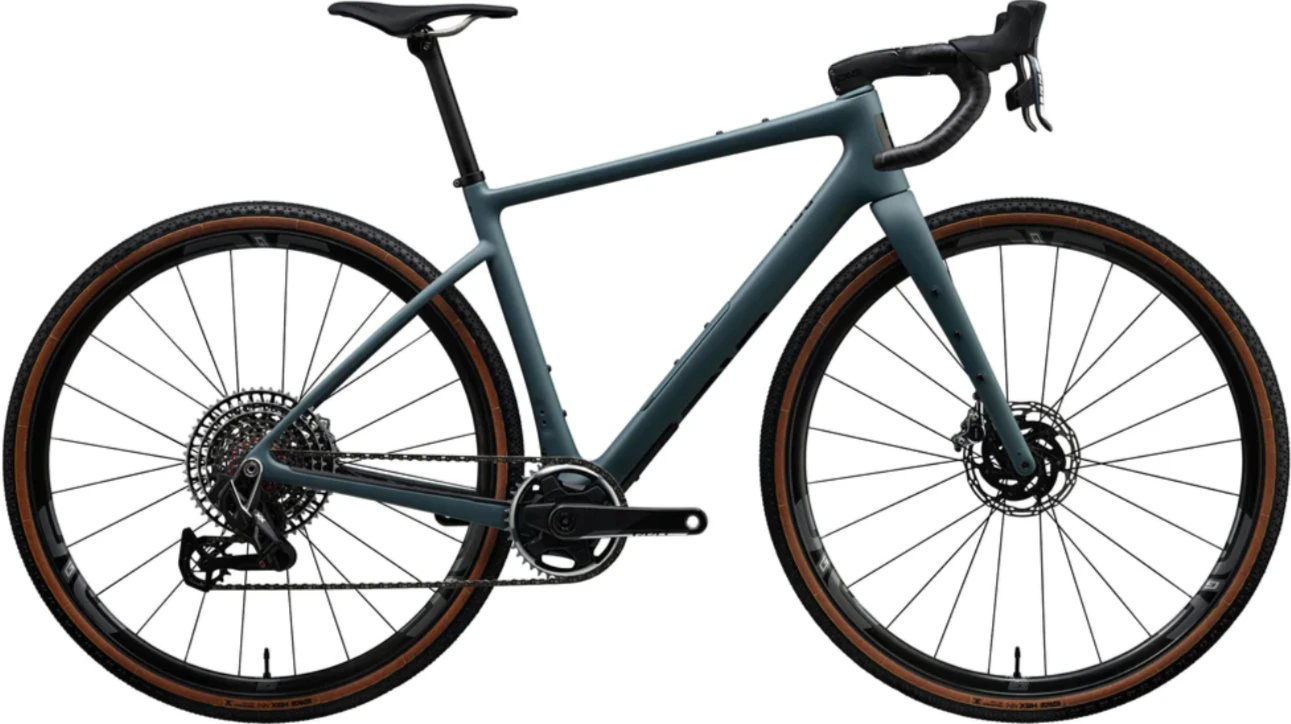

Enve MOG Frameset
Original price was: $360.00.$97.99Current price is: $97.99.
- Safeguard Your Shopping Experience
- Your questions, our prompt answers.
- Efficient and effective customer service, online.
- 100% High-Quality Guarantee

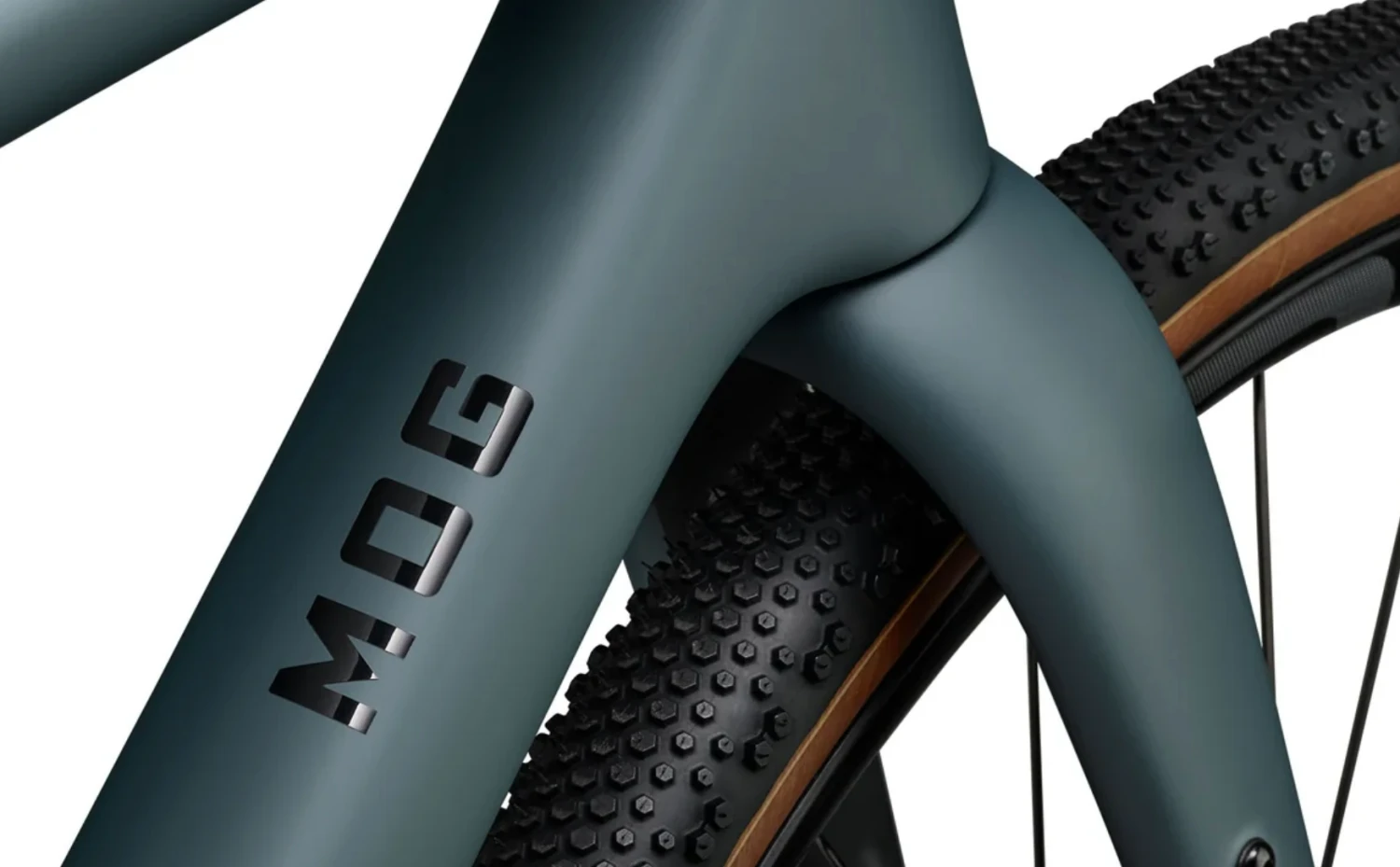

MOG
MOG is a noun, verb, acronym, and unequivocally a state of mind for those who push the boundaries of distance and rolling exploration. There’s no road too long, no course too tough for those willing to MOG.
Full of capability and overflowing with versatility, the MOG delivers a world of possibilities ranging from adventure to race, and everything between. With abundant tire clearance, storage solutions, and performance geometry, the MOG has it all, and more.

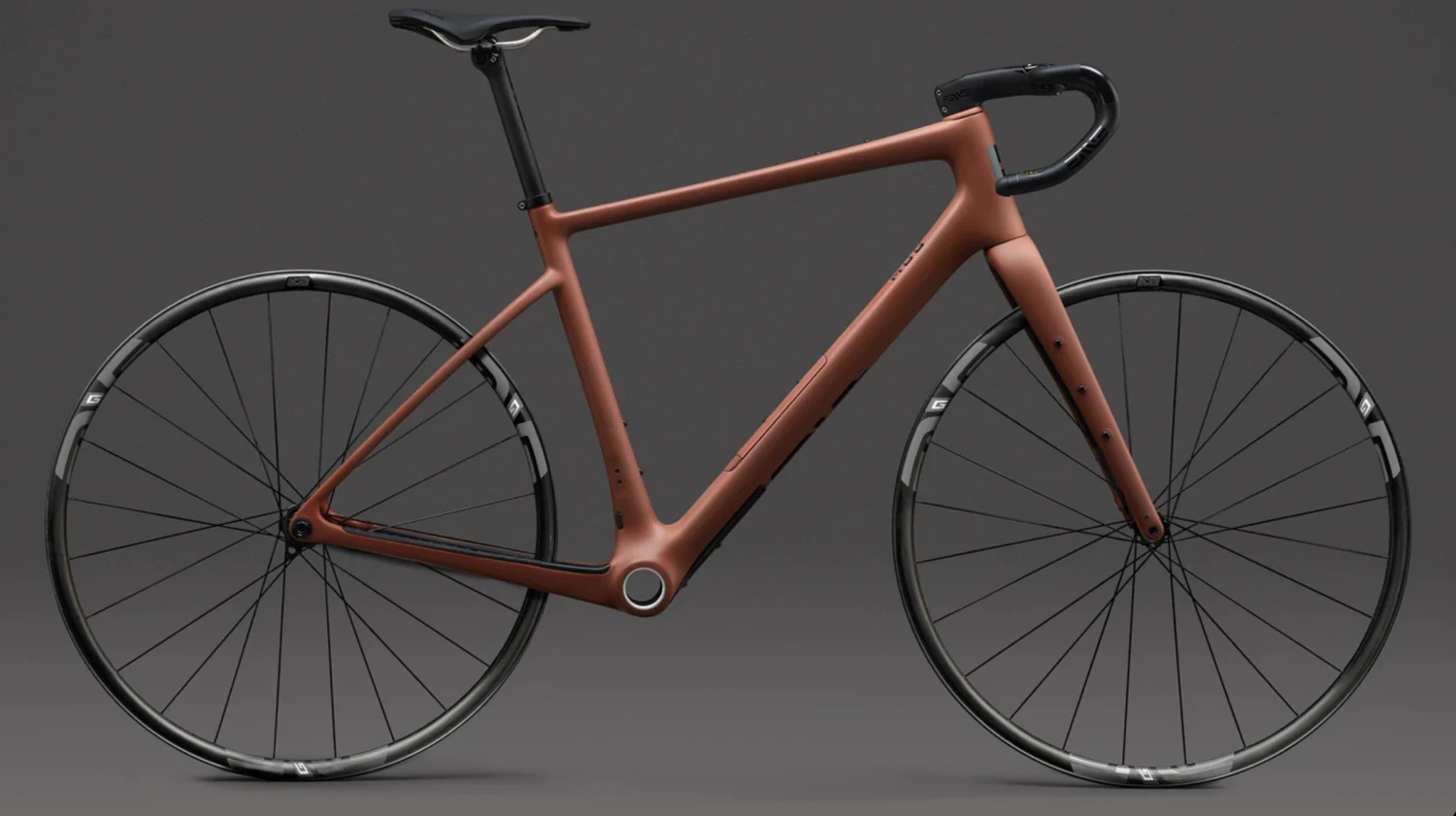

The MOG is sold as a chassis-only, including the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, handlebar model, and seatpost type depending on your riding style and preferences.
- Frame weight: 950 grams (56cm, painted, no hardware)
| Frame Material | ENVE M.O.D Carbon, 12×142 Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible |
| Fork Material | ENVE M.O.D Carbon, 12×100 Thru-Axle, Flat-Mount Disc, Internal Routing, Fender Compatible |
| Target Application | Gravel Racing/Riding/Exploration/Adventure |
| Sizes (cm) | 49, 52, 54, 56, 58, 60 |
| Fork Rake | 57, 55, 53 |
| Fork Axle to Crown | 395mm |
| Frame Size/Fork Rake | 49cm/57, 52cm/57, 54cm/55, 56cm/55, 58cm/53, 60cm/53 |
| Frame Weight | 950g +/- 2% (Size 56, Painted, No Hardware) |
| Headset | ENVE Integrated IS52/IS52 Internal Drop-In |
| Headset Bearing | 1.5″ IS52 Upper and Lower |
| Seat Post Diameter | 27.2 |
| BB Type | T47 Inboard Bearing |
| Brake Mount | Flat Mount |
| Brake Rotor Compatibility | F: 160/180, R: 140/160 (Adapters Required) |
| Front Axle | 12×100 (Total Length: 122, TP:1.5, TL:15) |
| Rear Axle | 12×142 (Total Length: 168, TP:1.0, TL:14) |

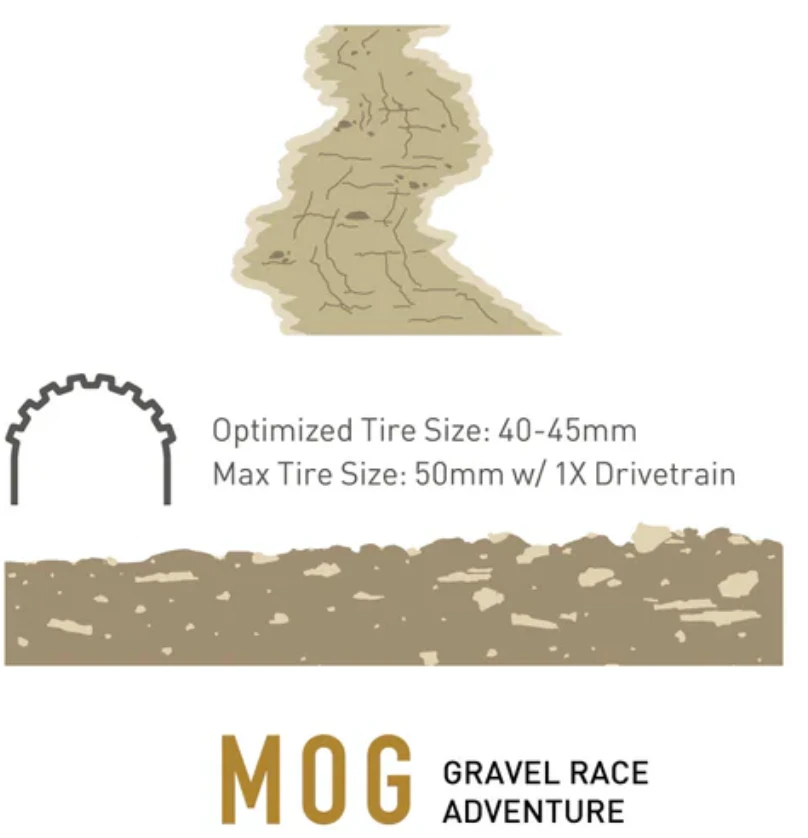

| Minimum Tire Size | 700 x 36c |
| Optimal Tire Size | 700 x 40c-44c |
| Maximum Listed Tire Clearance | 700 x 50c |
| Frame Routing | ENVE IN-Route Internal |
| Water Bottle Capacity | 3 |

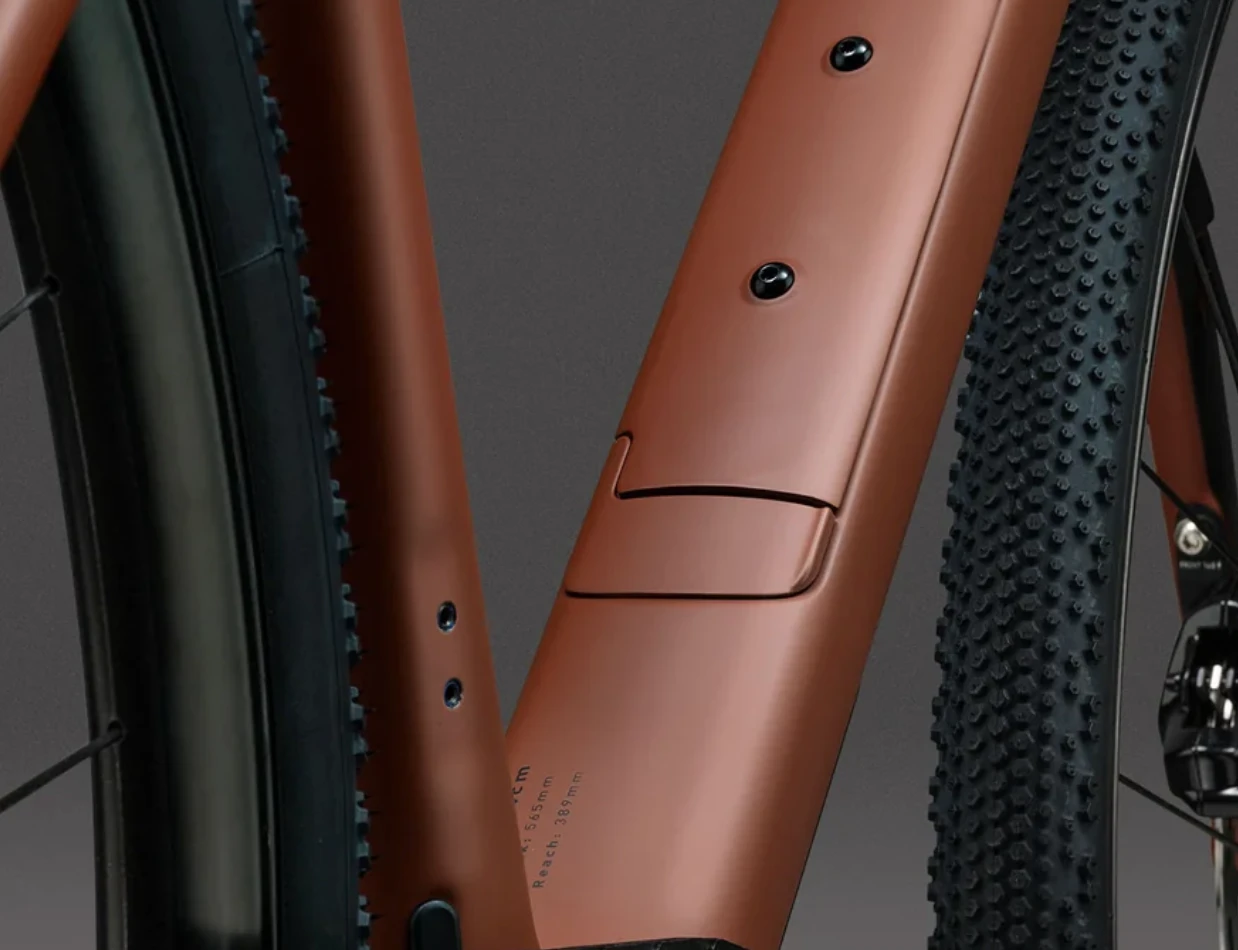

| Top Tube Mounts | Yes |
| Fender Mount Compatible | Yes |
| Wheel Size | 700C (650b Not Recommended) |
| Handlebars | Gravel, SES AR, Compact, SES Aero Road |
| Stem | ENVE Aero, IN-Route System (80, 90, 100, 110, 120, 130) |
| Seatposts | ENVE Seatpost 27.2 300mm/400mm x 0mm Offset/25mm Offset – G Series Dropper Post 27.2 |
Drivetrain Compatibility
| Shimano Mechanical 1x | Yes |
| Shimano Mechanical 2x | Yes |
| Shimano Electronic Di2 (1x/2x) | Yes |
| SRAM Mechanical 1x | Yes |
| SRAM Mechanical 2x | No (MOG requires continuous housing for FD) |
| SRAM AXS (1x/2x) | Yes |
| Campy Mechanical 1x | Yes |
| Campy Mechanical 2x | No (MOG requires continuous housing for FD) |
| Campy Electronic EPS | Not Compatible |
Brake Rotors
| Fork |
Fork is 160mm or 180mm with adapter. |
| Frame | Rear brake/frame is 140mm or 160mm with adapter. |

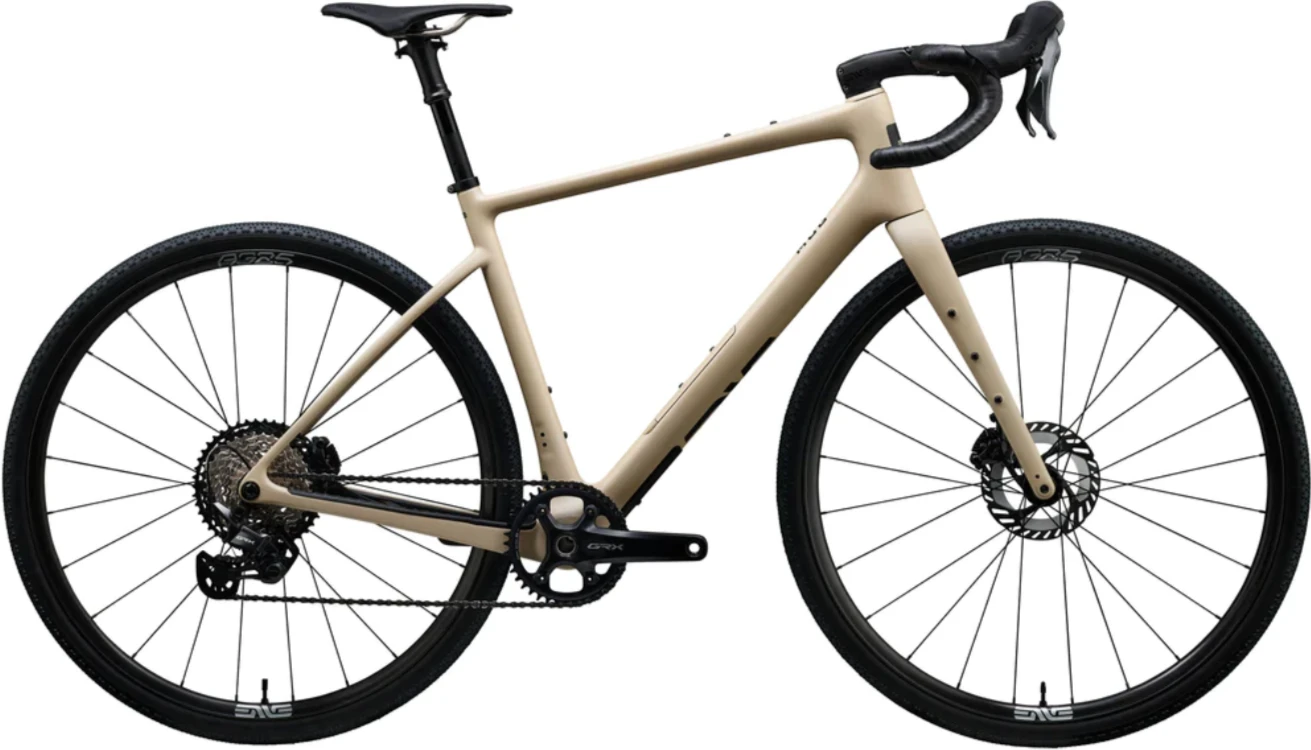

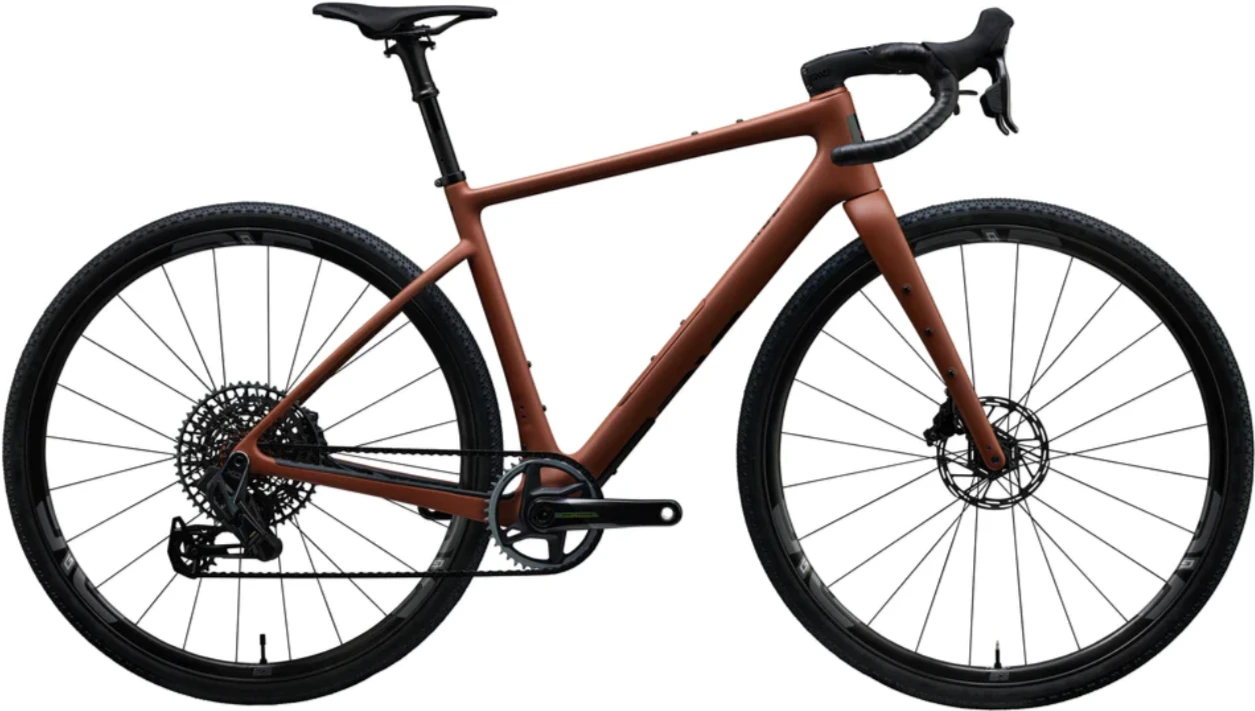

| Color | Slate Blue, Terracotta, Sand |
|---|---|
| Size | 49, 52, 54, 56, 58, 60 |
