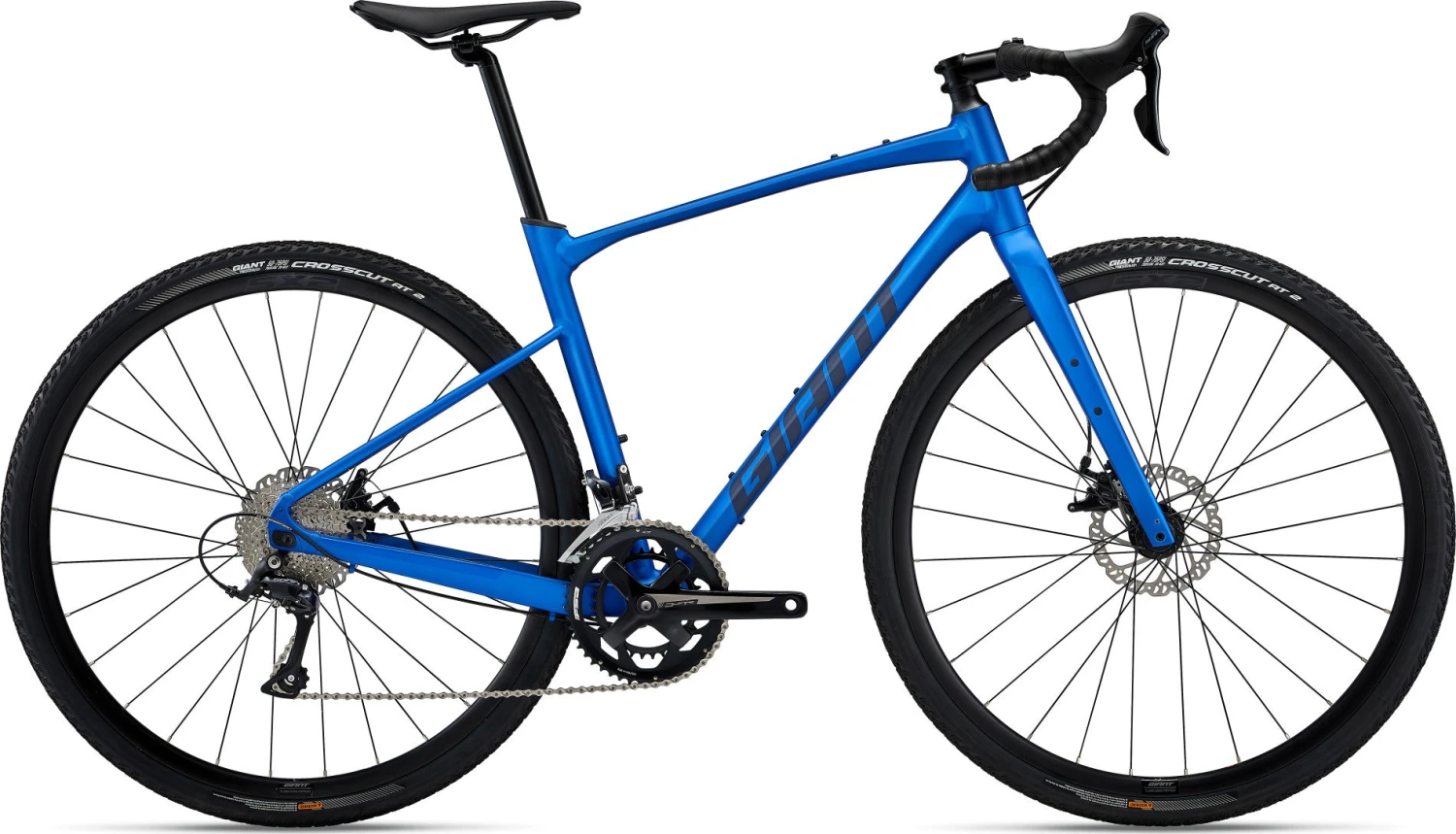

2023 Giant Revolt 2

Ride roads, gravel or dirt with this all-new aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.

• Sizes:
  XS, S, M, M/L, L, XL
• Colours:
  Black Diamond, Sapphire
• Frame:
  ALUXX-Grade Aluminum, 12x142mm thru-axle, disc, flip chip dropout Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
• Handlebar:
  Giant Contact XR Ergo-Control, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
• Grips:
  cork tape with gel
• Stem:
  Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
• Seatpost:
  Giant D-Fuse, alloy, 14mm offset
• Saddle:
  Giant Approach
• Shifters:
  Shimano Sora, 2×9
• Front Derailleur:
  Shimano Sora
• Rear Derailleur:
  Shimano Sora, long cage
• Brakes:
  Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm
• Brake Levers:
  Shimano Sora
• Cassette:
  Shimano HG400, 11×34
• Chain:
  KMC X9 with Missing Link
• Crankset:
  FSA Vero Pro, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket:
  cartridge
• Rims:
  Giant S-X2 Disc wheelset
• Hubs:
  Giant S-X2 Disc wheelset
• Spokes:
  Giant S-X2 Disc wheelset
• Tires:
  Giant CrossCut AT 2, 700x38c, tubeless
• Extras:
  tubeless prepared, 53mm max tire size in “long” flip chip position, 42mm max tire size in “short” flip chip position
• Weight:
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
